product core function is meterial curshing, conveying, mixing, dispersing, homogenizing, emulsifying, refining, it is widely used in food, pharmaceutical, commodity chemicals, industry of fine chemicals, petrochemical, papermaking chemicals, pesticides, chemical fertilizers, plastic, rubber, paint,coating meterial and so on.

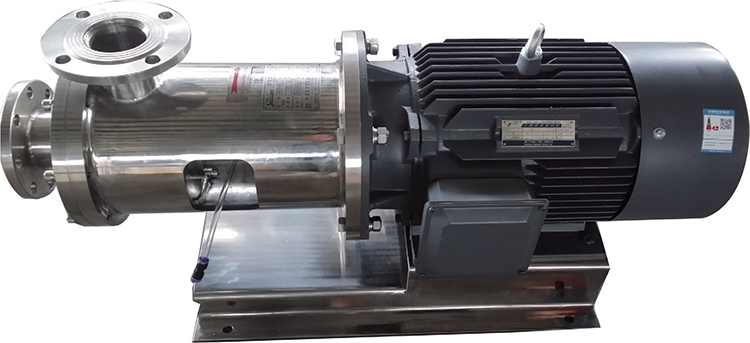

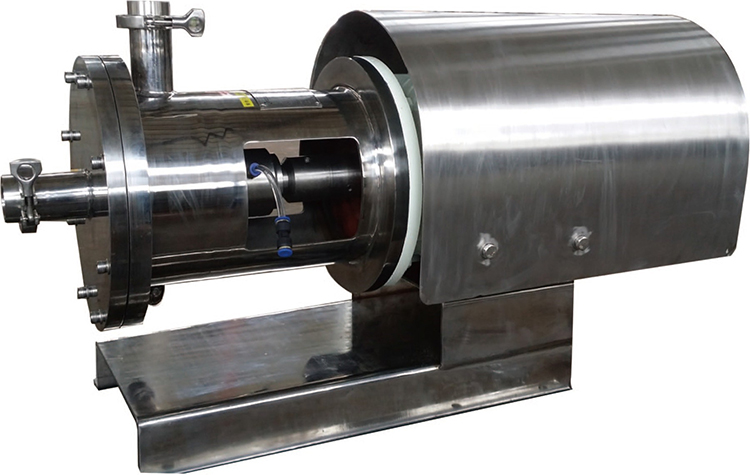

In-line high shear homogeneous emulsion pump has good homogeneous emulsion fluidity, low viscosity and small particle material. It is widely used in food, pharmaceutical, chemical, It has the characteristics of compact design, utility model, beautiful artistic, good sealing performance, working stable performance, convenient operation, simple installation and maintenance, durable, wide application and high production efficiency, it is the most suitable processing equipment for handling so fine materials, most spare parts which contact with materials are made of high strength stainless steel except motor and some other parts, the key part of this Machine are the dynamic and static grinding disc, tooth profile of grinding disc depend on the different nature of meterial, all pump parts are made by stainless steel tools, it is important of it’s corrosion resistance and wear resistance, because dynamic and static grinding disc have been already hardening, so it can reach fineness and flow of customer requirement.
Its basic working principles are shearing, grinding and high speed mixing, grinding depend on relative motion of two tooth surfaces, one is high speed rotate, another one is static, it can let meterial subjected to high shear force and friction force which passing through the space of the tooth surface, at the same time it is also under the complex forces to make the material be effectively dispersed, floated, crushed and homogenized, such as action of high frequency vibration, high speed centrifugal vortex
Product profile
In-line high shear homogeneous emulsion pump has 3 model:
Single grade serial, 3 grades serial, vertical serial, it can meet the requirements of different users, different working conditions, different requirement of the emulsification, homogenization process, and the requirements of different output of the meterial. It has the following characteristics:
- It has the ability of continuous mass production, no dead angle, meterial diameter narrower distribution, grinding uniform, easy to operate and can realize automatic operation.
- Compact structure, simple installation, small footprint, stable operation and low noise.
- It’s transmission adopts cantilever type in working cavity, it can be axial feed and radial discharge.
- It is suitable for high temperature, high viscosity, high flow, such as modified asphalt, emulsified asphalt, pulp dispersion, plastic, rubber, environmental protection and so on.
- Optional sealing forms: hard internal mechanical seal, external two-sides hard mechanical seal, metal corrugated hard mechanical seal, product standard made in Germany.
- Storage tank can be used for continous tandem process and cycle process, this design ensures that all materials which entering into the mixing container must be first through the precisely matched stator and rotor before exiting. The extraction capacity is large enough that it no need an auxiliary pump to pump the material up and down. Special single or double mechanical seals are used in a strong process.
Structure chart
Rotor/stator
working cavity has a set of stator and rotor, the driving shaft is cantilever type, the drive shaft is connected directly with the motor, and the high power equipment is connected with the bearing seat. The seal form adopts the mechanical seal, it also choose the other seal.
It is suitable for medium and small batch recycling process. It is suggested that it is together with clearance high shear dispersing emulsifier pump, and the treatment effect is better.
Technical parameter :
ADRH600A-1、ADRH600B-1 In-line high shear homogeneous emulsion pump
|
Model
|
Power (KW)
|
Speed (r/min)
|
Size (mm)
|
Processing(m3/h)
|
Connecting way
|
|
ADRH601A-1
|
1.1
|
2900
|
32/25
|
0-1
|
Directly
|
|
ADRH602A-1
|
2.2
|
2900
|
40/32
|
0-3
|
Directly
|
|
ADRH604A-1
|
4
|
2900
|
50/40
|
0-5
|
Directly
|
|
ADRH607A-1
|
7.5
|
2900
|
50/40
|
0-7
|
Directly
|
|
ADRH611A-1
|
11
|
2900
|
65/50
|
0-12
|
Directly
|
|
ADRH615A-1
|
15
|
2900
|
65/50
|
0-18
|
Directly
|
|
ADRH622A-1
|
22
|
2900
|
65/50
|
0-25
|
Directly
|
|
ADRH637B-1
|
37
|
2900
|
80/65
|
0-35
|
Connect bearing seat
|
|
ADRH645B-1
|
45
|
2900
|
100/80
|
0-50
|
Connect bearing seat
|
|
ADRH655B-1
|
55
|
2900
|
100/80
|
0-60
|
Connect bearing seat
|
|
ADRH675B-1
|
75
|
2900
|
125/100
|
0-80
|
Connect bearing seat
|
Attentation: * flow range in form is the measured data when the medium is "water", output pressure in the form ≤0.2Mpa.
*it is better transport by the matching flow pump in the entrance if the media with less fluidity. Pump input pressure ≤0.2Mpa.
*The data are subject to change without prior notice, and the correct parameters are subject to the provision of physical objects
