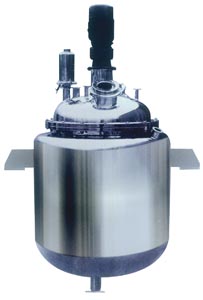

product core function is meterial curshing, conveying, mixing, dispersing, homogenizing, emulsifying, refining, it is widely used in food, pharmaceutical, commodity chemicals, industry of fine chemicals, petrochemical, papermaking chemicals, pesticides, chemical fertilizers, plastic, rubber, paint,coating meterial and so on.
application area:
Mainly used in pharmaceutical, food, light industry, petrochemical, agriculture, building materials and other industries of liquid-liquid, liquid-solid, liquid-gas mixing, extraction, crystallization, heating, emulsion polymerization, dissolution and various reaction processes.
Performance characteristics:
Various types of stirrer head can meet various technological requirements.
Steam heating or electric heating allows the medium to be heated while stirring.
Optimized design ensures various process requirements.
Stir awe
Six-blade vortex spiral disk propelle sawtooth impelle two-speed combined propelle six concave blade turbine.
Technical parameter：
|
model
|
Volume
(L)
|
Tank diameter
|
Clamp diameter
|
Supporting center circle
|
No.of supporting
|
power
(kW)
|
Actural volume
(L)
|
|
F50
|
50
|
Ф400
|
Ф500
|
Ф650
|
2
|
0.5
|
60
|
|
F100
|
100
|
Ф500
|
Ф600
|
Ф800
|
2
|
1.1
|
120
|
|
F300
|
300
|
Ф800
|
Ф900
|
Ф1100
|
4
|
2.2
|
360
|
|
F500
|
500
|
Ф900
|
Ф1000
|
Ф1328
|
4
|
2.2
|
600
|
|
F1000
|
1000
|
Ф1200
|
Ф1300
|
Ф1595
|
4
|
4.0
|
1200
|
|
F2000
|
2000
|
Ф1400
|
Ф1500
|
Ф1745
|
4
|
5.5
|
2400
|
|
F3000
|
3000
|
Ф1500
|
Ф1650
|
Ф1895
|
4
|
7.5
|
3600
|
|
F4000
|
4000
|
Ф1600
|
Ф1750
|
Ф2015
|
4
|
7.5
|
4800
|
|
F5000
|
5000
|
Ф1800
|
Ф1950
|
Ф2265
|
4
|
7.5
|
6000
|
Attention: (1) This machine has carbon steel, ordinary stainless steel and other stainless steel in contact with the material.
(2) Please indicate the material, heating method, stirring impeller name and so on when ordering,
(3) the structure dimensions are only for reference , and can be order as special design and manufacture.
Type selection list of agitato：
|
Agitato
|
flowage
|
Stirring purpose
|
speed
|
maximun
|
|
countercurrent
|
Turbulent flow
|
Shear flow
|
Low viscosity
|
High viscosity mixed
|
dispersion
|
solid
|
gas
|
Junction crystal
|
Heat transfer
|
Liquid phase
|
scope
|
viscosity
|
|
type
|
circulate
|
spread
|
mixture
|
Liquid heat transfer reaction
|
suspension
|
absorb
|
reaction
|
r/min
|
PaS
|
|
Turbo-type
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
10～300
|
50
|
|
Paddle-type
|
○
|
○
|
○
|
○
|
○
|
|
○
|
|
○
|
○
|
○
|
10～300
|
2
|
|
Push-type
|
○
|
○
|
|
○
|
|
○
|
○
|
|
○
|
○
|
○
|
100～500
|
50
|
|
Leaf opening vortex
|
○
|
○
|
|
|
|
○
|
|
|
|
○
|
○
|
10～300
|
50
|
|
Anchor-type
|
○
|
|
|
|
○
|
|
|
|
|
|
|
1～100
|
50
|
|
Screw-type
|
○
|
|
|
|
○
|
|
|
|
|
|
|
0.5～50
|
100
|
|
Screw belt-type
|
○
|
|
|
|
○
|
|
|
|
|
|
|
0.5～50
|
100
|
Attention: ○ excellent performance
